Setup Enterprise Websites Graph Connector in Microsoft 365 Admin Center

Steps to Set Up Enterprise Websites Graph Connector in Microsoft 365 Admin Center

  1. Add a connector in the Microsoft 365 admin center.
  • Go to Microsoft 365 Admin Center

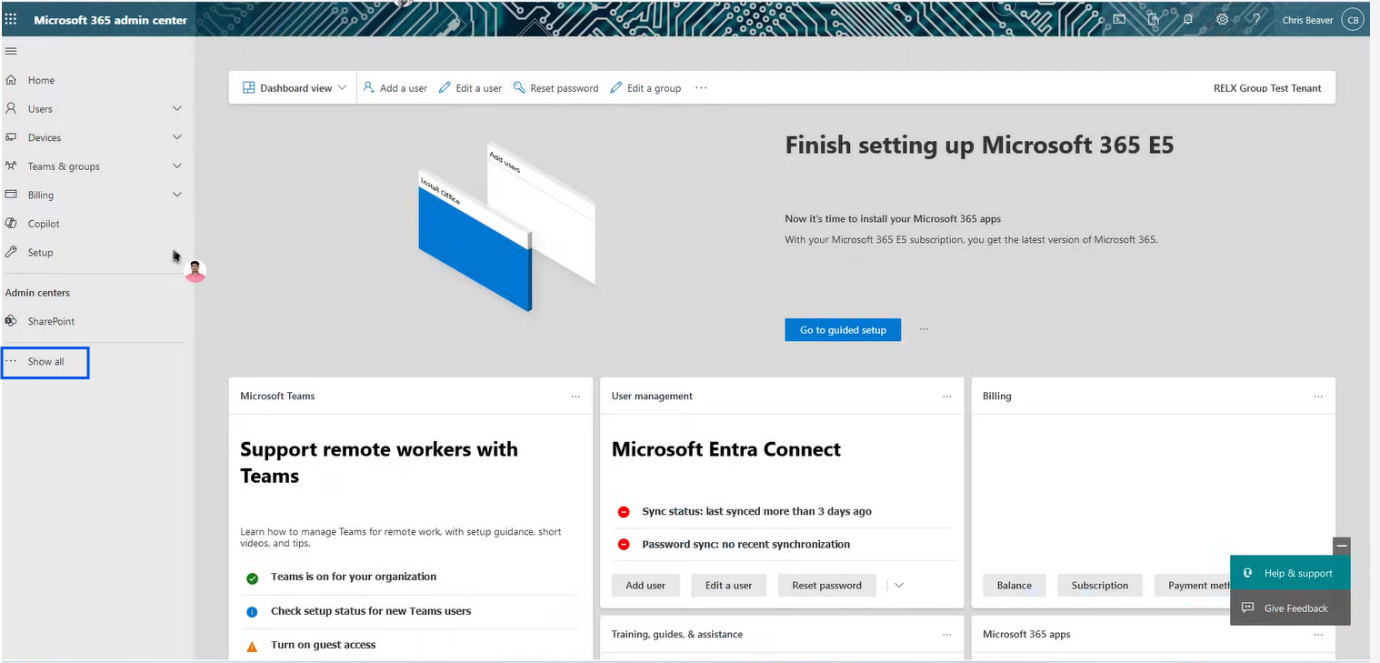

  • Click on see all

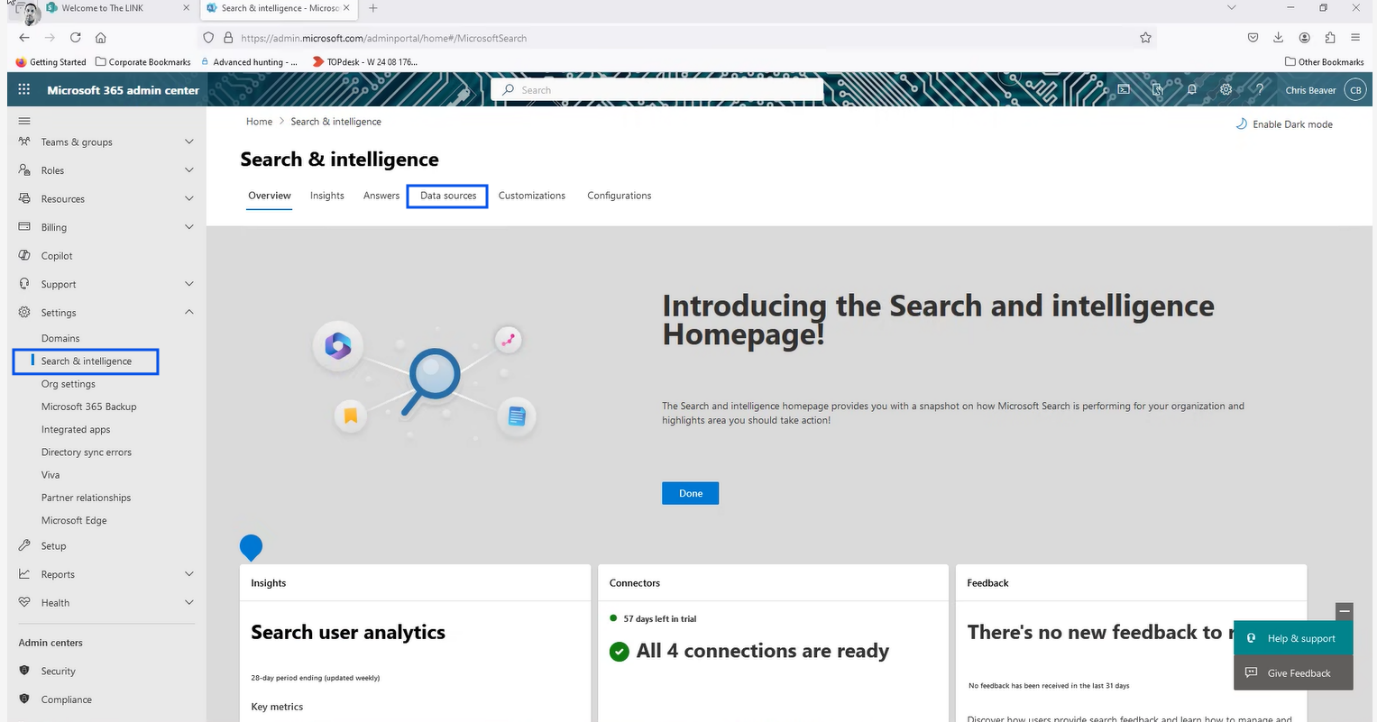

  • Click on Search & Intelligence > Data sources.

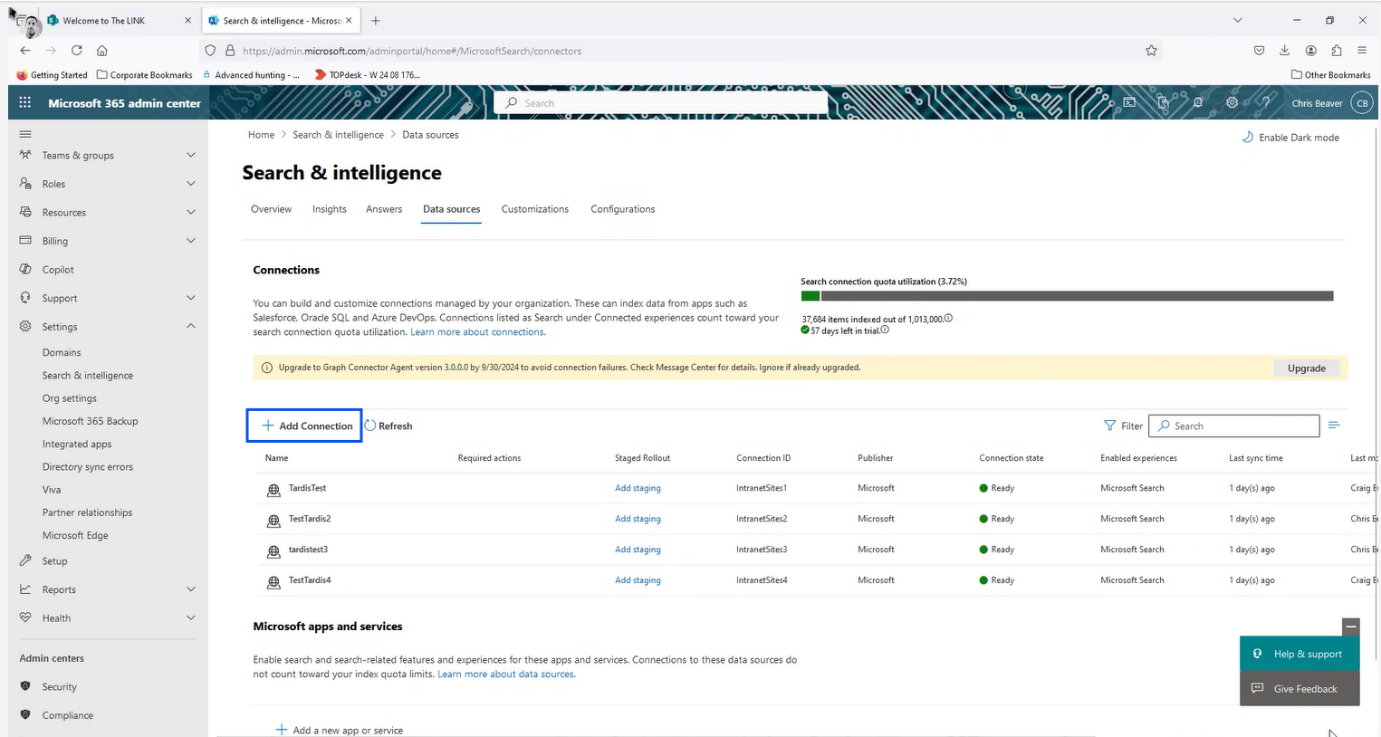

  • Click on Add connections

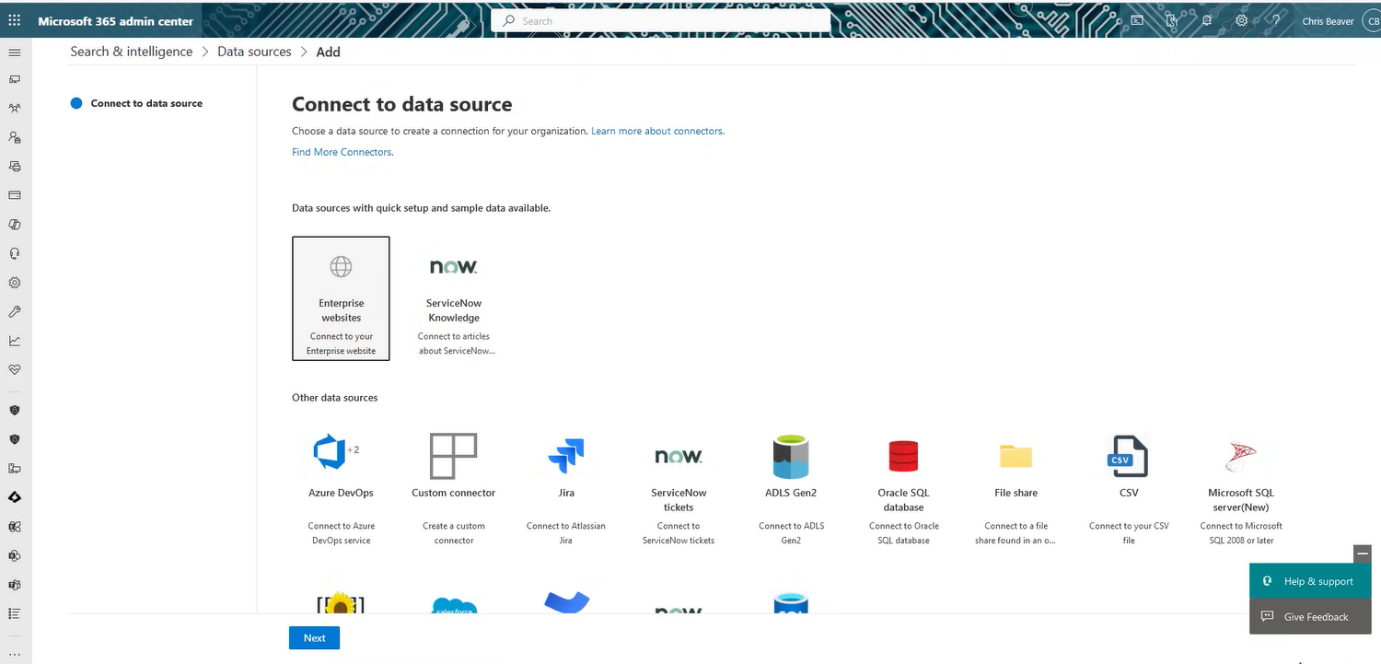

  • Select Enterprise Websites Graph Connector

 A screenshot of a computer

Description automatically generated

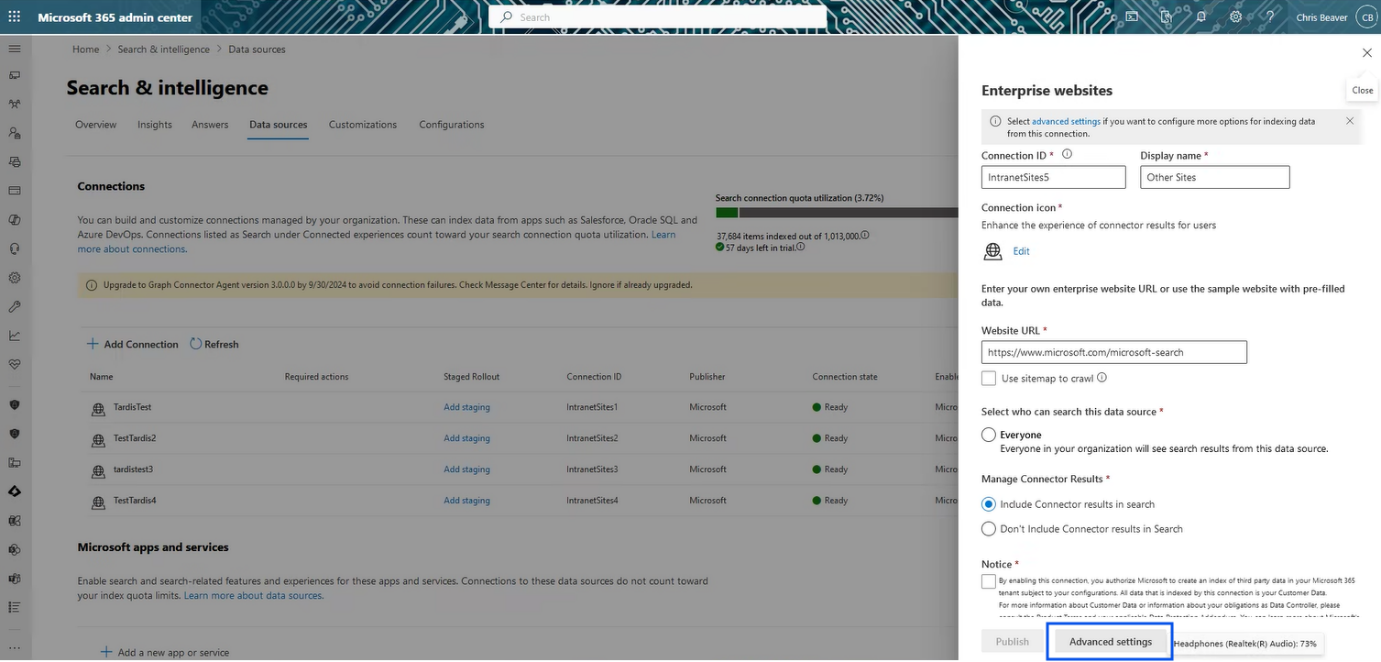

  • Click on Advanced Settings



  1. Name the connection
  • Fill the following fields
  • Connection ID(edit): TardisIntranetSite
  • Name: TardisIntranetSiteConnector
  • Description : The content is related tardis azurewebsites which is an HTML-based website containing R&D documentation for the Tardis framework.The help content is designed to assist users by providing answers to their questions with a reference URL to the source website page
  • Display Name: keep it the default



  • Checked the notice checkbox and click on save and Proceed



  1. Configure the connection settings
  • Fill the following fields
  • Use sitemap for crawling: keep unchecked
  • Dynamic site configuration: keep unchecked
  • Display Name: keep it the default
  • Crawl mode: Cloud
  • Authentication type: OAuth 2.0





  • Fill the following fields
  • resource ID:  9ea9dd6c-a007-43c5-9a50-484e7c783b17
  • client ID : 26109dc7-a1c7-4fc8-925a-36dfa06de501
  • client secret: we will send via another email





  • Click on Test Connection and if it is successful, click Save and proceed.







  1. Manage Search Permissions
  • Select Everyone and click Save and Proceed
  • Note: After completing the setup, we can adjust the sharing settings to limit access to a specific user or user group. However, the partner wants to provide access to every RELX tenant user.







  1. Meta tag settings
  • Select all the following options and click Save and Proceed.



  1. Custom property settings
  • Select Keep the default properties and click Save and Proceed.





  1. Add URLs to exclude
  • Don't add any URLs and click Save and Proceed.



  1. Assign property labels.
  • Keep default.
  • Ensure title and URL labels are correct as shown in the image.
  • Click Save and Proceed.





  1. Manage schema
  • Select the content property from the drop-down as shown in the image.





  • In the schema, ensure that the checkboxes for the following properties are checked
  • Content: search
  • Title: search & Retrieve
  • Url: Retrieve













  • Click Save and Proceed.



  1. Choose refresh settings
  • Time zone: Eastern Standard Time
  • Recurrence: week
  • Add Day: Saturday



  • Click Save and Proceed.





  1. Review Connection & Publish
  • Review the connection and click the Publish button

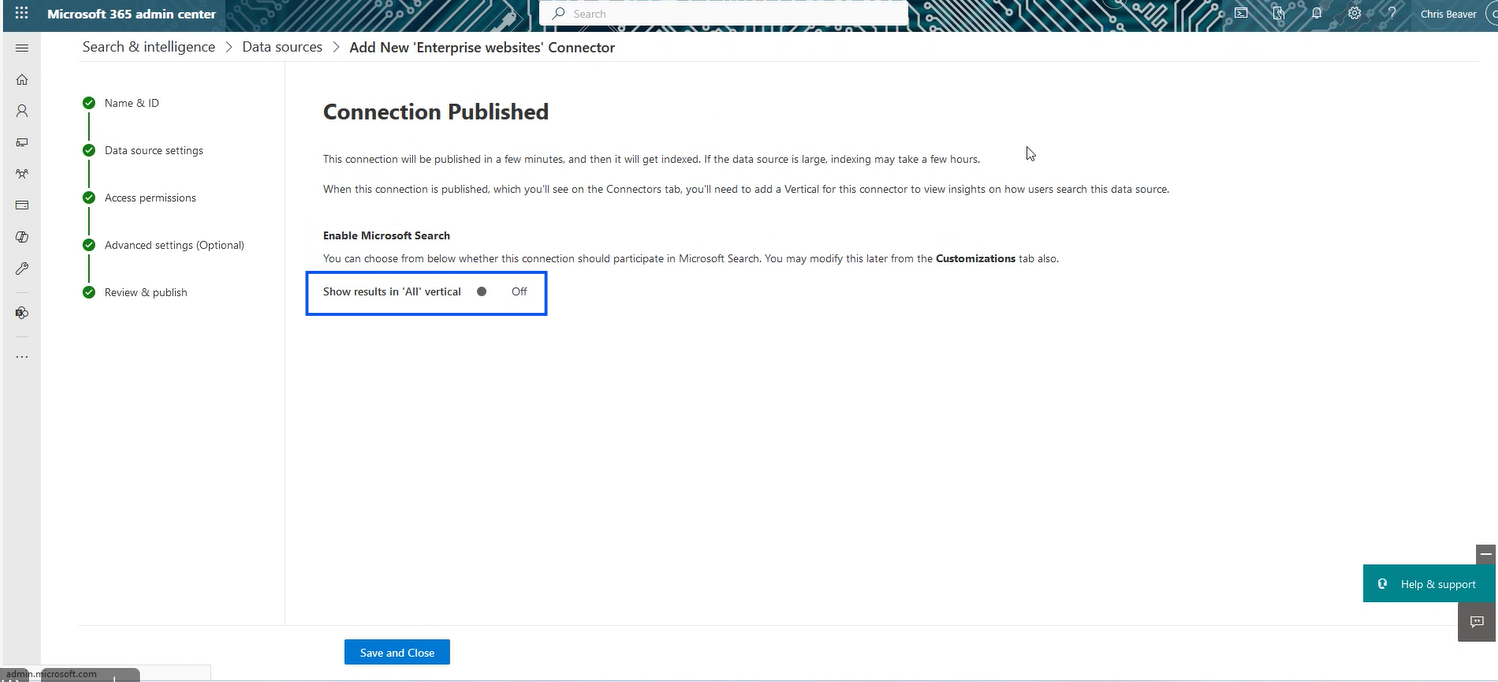

  1. Vertical Settings
  • Show results in the “All” vertical: Turn off.
  • Click save and close





The setup for the Enterprise Websites Graph Connector is completed.
